Mixer Drum Trunnion Rollers: How the Drum Is Actually Supported, Not Just Driven
We've written before about how a mixer drum gets its power, PTO off the main engine versus a dedicated auxiliary engine. That's a real and important question, but it's a completely different question from how the drum's weight, several tons of steel plus however many yards of wet concrete it's carrying, actually gets held up and allowed to spin without destroying the chassis underneath it. That second question comes down to a part most drivers have never had to think about: the trunnion.
What a Trunnion Actually Is

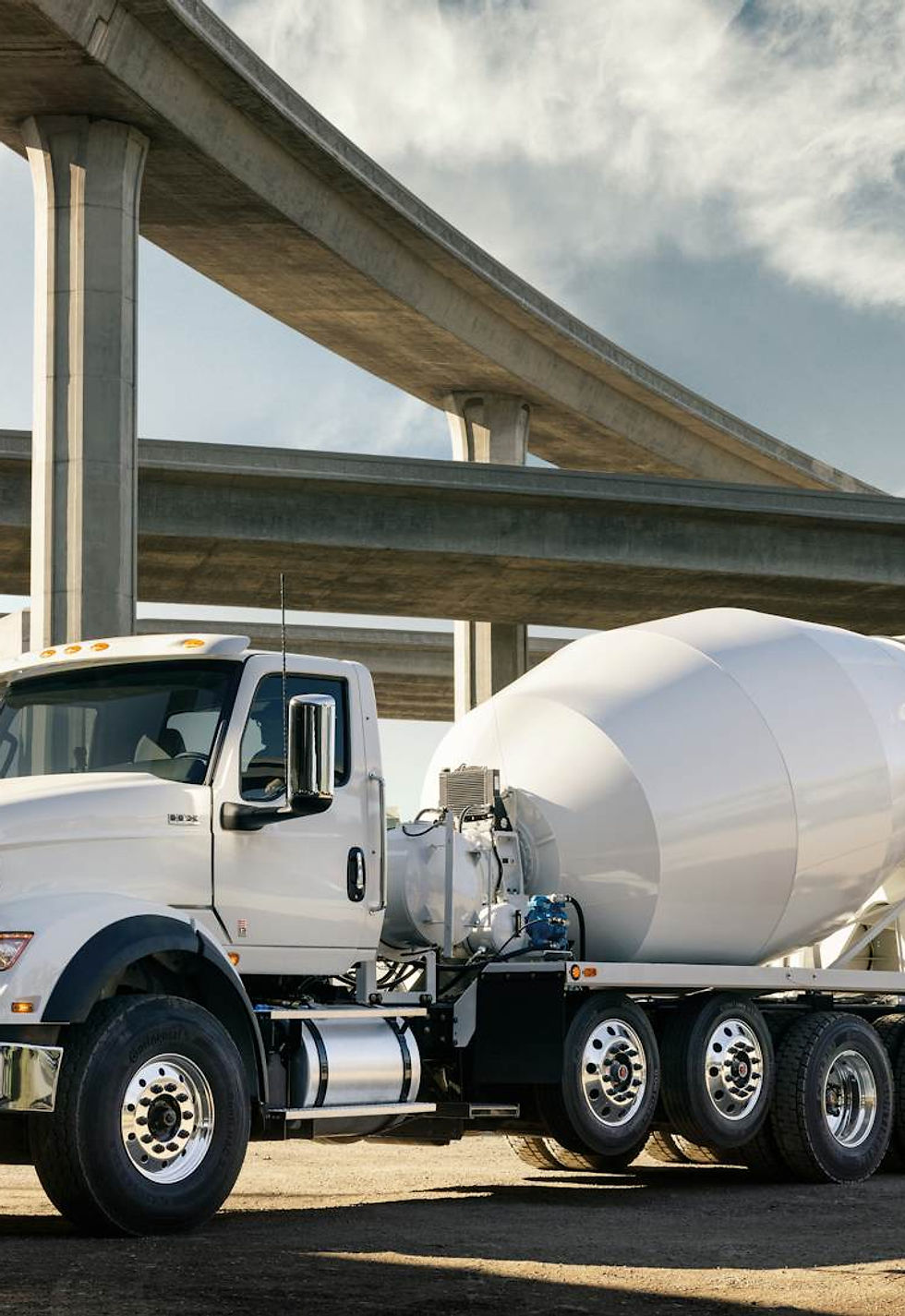

On a truck-mounted mixer, the drum doesn't just sit bolted to the frame. It has to rotate continuously, in both directions, at varying speeds, for an entire shift, while carrying a load that shifts and churns inside it. To make that possible without the drum's weight riding directly on a single shaft or bearing, mixer builders support the drum on rollers that bear against a circular track, or tire ring, built into the drum's own shell. Those roller assemblies, and their mounting hardware, are the trunnions. On most truck mixers, the drum is supported at two points: a front bearing or pedestal near the cab end, often combined with the gearbox that drives the drum, and a rear trunnion assembly riding on a tire ring near the discharge end, carrying a large share of the drum's weight on simple rolling contact rather than a sealed bearing race.
It's a deceptively simple arrangement, a roller pressed against a ring, but it's doing genuinely hard mechanical work: continuously supporting a rotating, unbalanced, multi-ton load while the truck itself is bouncing down a haul road or a jobsite access point.
Why Alignment Is the Whole Game
The engineering detail that actually matters for anyone running these trucks is alignment, not raw size or roller count. A drum doesn't sit perfectly level on its trunnions; it's deliberately mounted with a slight tilt, and the rollers themselves are set at a slight skew angle so that, as they spin, they constantly push the drum very slightly "uphill" against that tilt. That skew is what keeps the drum's weight from sliding forward into the front thrust bearing under gravity alone. Get that skew wrong, even by a small amount, and two things start happening at once: the rollers push unevenly against the tire ring, which causes scuffing and accelerated wear on both surfaces, and the front thrust components start absorbing more load than they were designed for.
Mechanics and body-builder service documentation describe trunnion and tire wear as a recurring maintenance item precisely because of this: a drum running on misaligned trunnions can chew through roller and tire-ring surfaces in a fraction of the time a properly aligned one would, and because the drum itself has to be cut apart to replace a worn tire ring, that's a far more expensive repair than simply swapping a roller. Periodic trunnion adjustment, checking and correcting that skew angle as the mixer ages or as components wear, is standard preventive maintenance on a well-run mixer fleet, not an occasional afterthought. Industry documentation on trunnion-mounted mixing equipment has reported drums and tires lasting as little as two years when alignment wasn't carefully managed, against a dramatically longer service life once a disciplined adjustment procedure was put in place, which gives a real sense of how much is actually riding on a few degrees of roller skew.
The adjustment itself is a precision job, not a rough-and-ready fix. Technicians loosen the trunnion unit's mounting bolts, use threaded positioning rods to shift the roller's position and angle in small increments, often on the order of a small fraction of an inch per adjustment turn, and check the result against fixed reference points before re-torquing everything down. It's slow, deliberate work, and it's exactly the kind of maintenance task that gets skipped on a fleet running trucks hard with no slack in the schedule, which is precisely when it matters most.
What This Means Day to Day
A grinding, scraping, or uneven sound from the rear of the drum, especially one that changes with drum rotation speed or direction, is worth investigating immediately rather than waiting for the next scheduled service; it's often the first sign of trunnion misalignment or roller wear.
Visible wear lines or scoring on the drum's tire ring, visible during a walk-around inspection, usually means the trunnion alignment has drifted and needs correction before the wear gets worse.
A drum that seems to be creeping forward or putting unusual load on the front bearing or gearbox over time is often a trunnion skew problem showing up at the other end of the machine, not a front-end problem in isolation.
Preventive trunnion inspection and adjustment belongs on the same service interval discipline as engine and hydraulic maintenance, since the repair cost if it's ignored, a cut-open drum and a new tire ring, dwarfs the cost of routine adjustment.
Who This Actually Matters To
Ready-mix producers and concrete contractors running their own mixer fleets, where trunnion wear directly affects how long a drum lasts before a major rebuild.
Fleet maintenance managers setting preventive maintenance schedules, since trunnion inspection is a line item that's easy to skip until it's already an expensive problem.
Buyers evaluating a used mixer truck, where visible tire ring scoring or uneven wear patterns on the trunnion rollers are a real, inspectable indicator of how well the previous owner maintained the machine, not just a cosmetic issue.
Anyone comparing total cost of ownership between mixer brands and body builders, since trunnion design and the ease of field adjustment vary enough between builders to matter over a drum's working life.
Supporting Weight vs. Cooling the System That Drives It
Trunnion support and drum drive are two separate mechanical systems doing two separate jobs, but they share one thing: both run continuously for most of a shift, and both generate heat and wear that a well-run fleet has to plan for rather than react to. We've covered the hydraulic side of that equation, oil cooler and reservoir sizing for a continuous-duty mixer drum, and the PTO versus auxiliary engine drive question separately. Trunnion wear belongs in that same preventive-maintenance conversation: it's not glamorous, but it's one of the few mixer components that can take a drum out of service for a major, expensive repair if it's ignored long enough.
Buy, Finance, or Rebuild: Thinking About the Drum's Real Lifespan
For a ready-mix operation evaluating whether to rebuild an aging mixer drum or replace the whole truck, trunnion and tire ring condition should be part of that calculation alongside engine hours and chassis condition. A drum with well-maintained trunnions and a sound tire ring can have a long service life ahead of it even on an older chassis; one with years of neglected alignment is looking at a major, disruptive rebuild regardless of how good the rest of the truck looks. Financing a replacement mixer truck, or a rebuilt drum on an existing chassis, is often the more predictable path than gambling on how much life is actually left in a drum whose trunnion history nobody tracked closely.
That's also exactly the kind of judgment call where financing or leasing, rather than tying up cash in a full truck replacement or an expensive mid-life drum rebuild, gives an operation flexibility. A mixer truck with a tired drum doesn't have to mean a cash crunch; structuring the replacement or rebuild through equipment financing keeps working capital available for payroll and materials while the fleet gets the mechanical reset it needs.
The Trades That Actually Feel This
This isn't an abstract engineering curiosity. Ready-mix producers running dedicated delivery fleets feel trunnion wear directly in drum downtime and rebuild costs. General contractors and concrete subcontractors who lease or operate their own mixer trucks for steady volume, rather than ordering every load from an outside supplier, take on this same maintenance responsibility the moment they own the truck instead of just buying the concrete. Even demolition and site-development contractors who occasionally run a mixer truck for incidental flatwork should know enough about trunnion wear to ask the right questions before buying a used unit, since it's one of the clearest tells of how a previous owner actually ran the machine.
